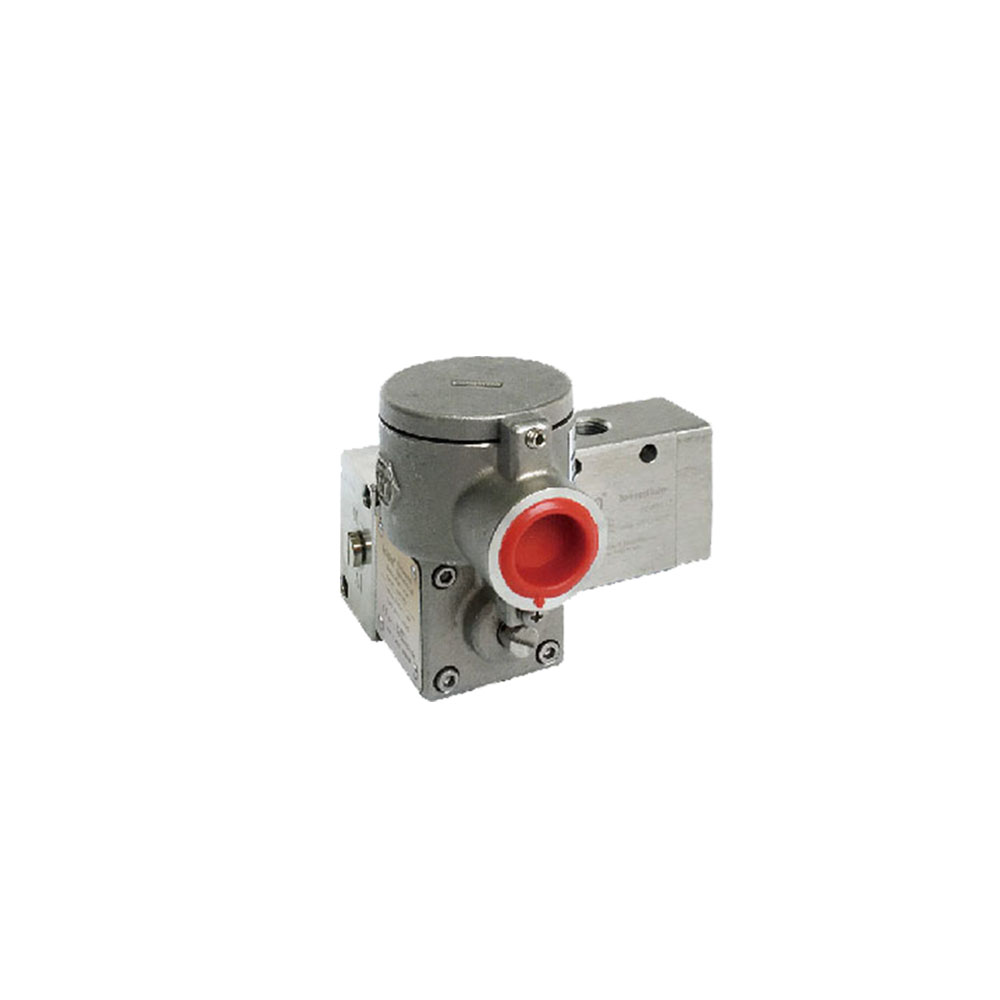

Thermoplastic Ex ia Stainless Steel Solenoid Valve

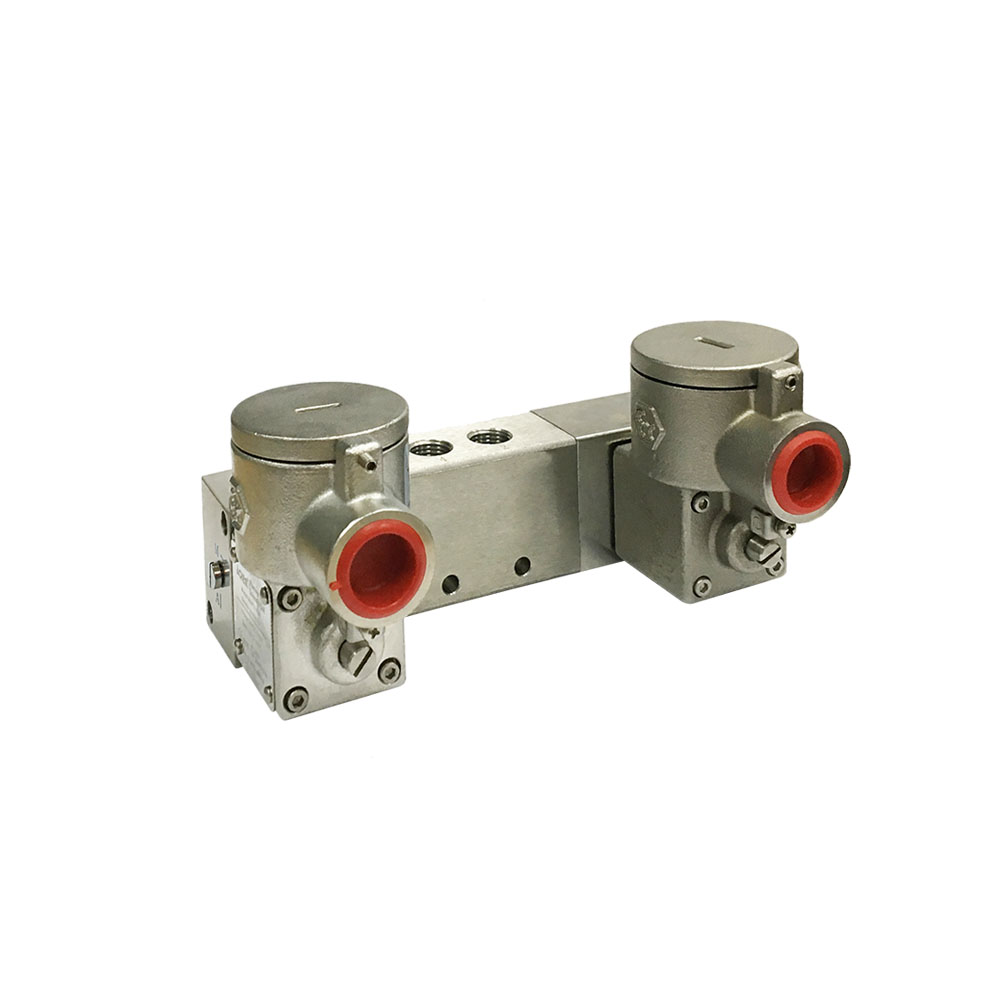

• This series of products is a 3/2, 5/2 pilot acting stainless steel solenoid valve. Using advanced cartridge structure sealing technology, the valve body has no breathing hole to outside, good waterproof and dust-proof performance and long working life. For the Namur version, each valve body is equipped with 3/2 and 5/2 NAMUR plates that is available for the operation of double-acting and spring-return pneumatic actuators. The in-line mounting also is available. The coil and the intrinsic safe circuit is hermetically sealed and protected by thermoplastic enclosure which can be used in hazardous locations Ex ia IIC T6 Ga and Ex ia IIIC T85℃ Db approved by ATEX and IECEx.
