About the product

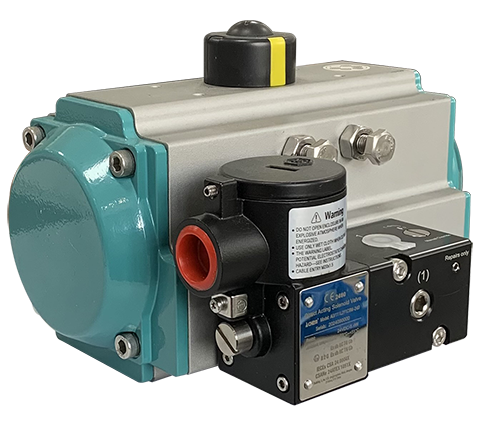

This kind of direct acting solenoid valve with flameproof (explosion-proof) aluminium or stainless steel enclosure coil which is recommended, tested and certified for use in hazardous areas (Zone 1 & Zone 21 and Class I, Division 1) by CSA \ ATEX \ IECEX \ CCC. Armed with balanced poppet structure, the direct acting valve is a universal flow valve which provides not only 3/2NC and 3/2NO but also mixing and diverting flow functions with high-flow (CV=0.48). The pressure ranges of this valve is wide (0-12Bar) with bobble tight and no minimum operating pressure.

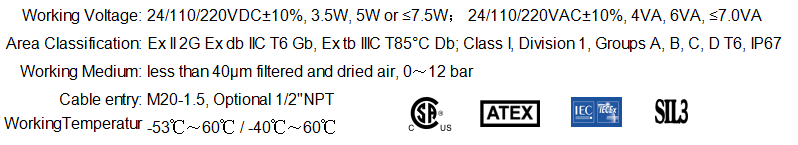

Explosion-proof technology data

The model no., function and Dimension

Regarding to the details, please contact with info@allied-actuator.com, thank you in advance.
