About the product

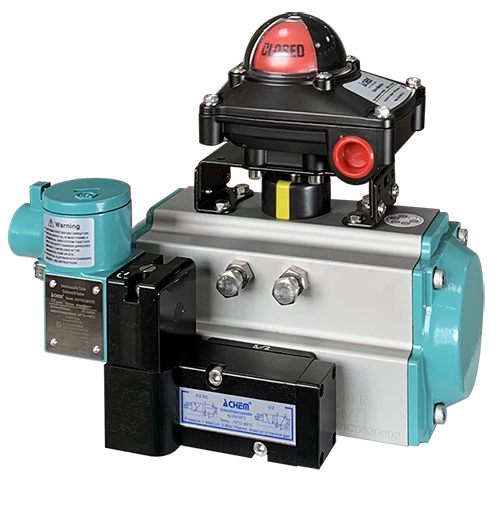

This type of intrinsically safe pilot acting solenoid valve is composed of two parts: intrinsically safe direct action solenoid valve and spool valve, which is installed each other according to CNOMO-30 standard. The spool valve is with cartridge structure, not only for long working life but also effectively preventing external liquid, dust or other debris entering the valve body. The spool valve is available with Namur and In-line connection, with materials of aluminum. This type of intrinsically safe pilot acting solenoid valve can be directlyinstalled and connected with a variety of pneumatic actuators to achieve the on/off control in the hazardous areas (Zone 0，zone 20).

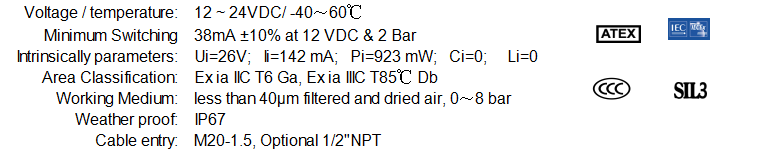

Intrinsical safe technology data

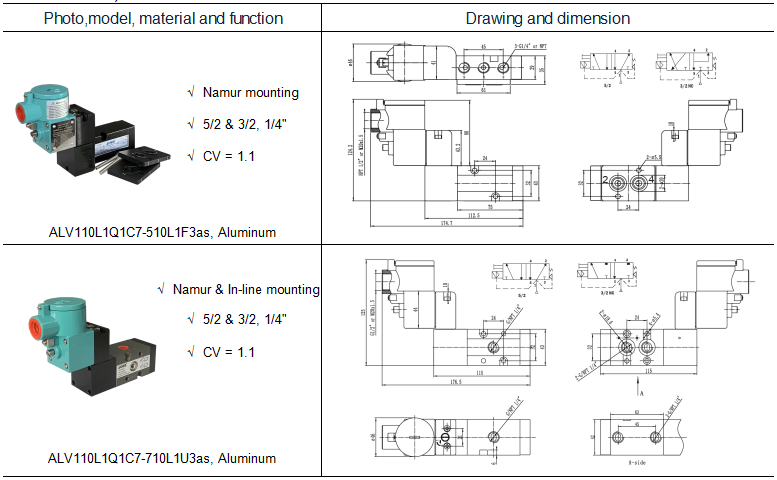

The model no., function and Dimension

Regarding to the details, please contact with info@alpha-achem.com, thank you in advance.
