About the product

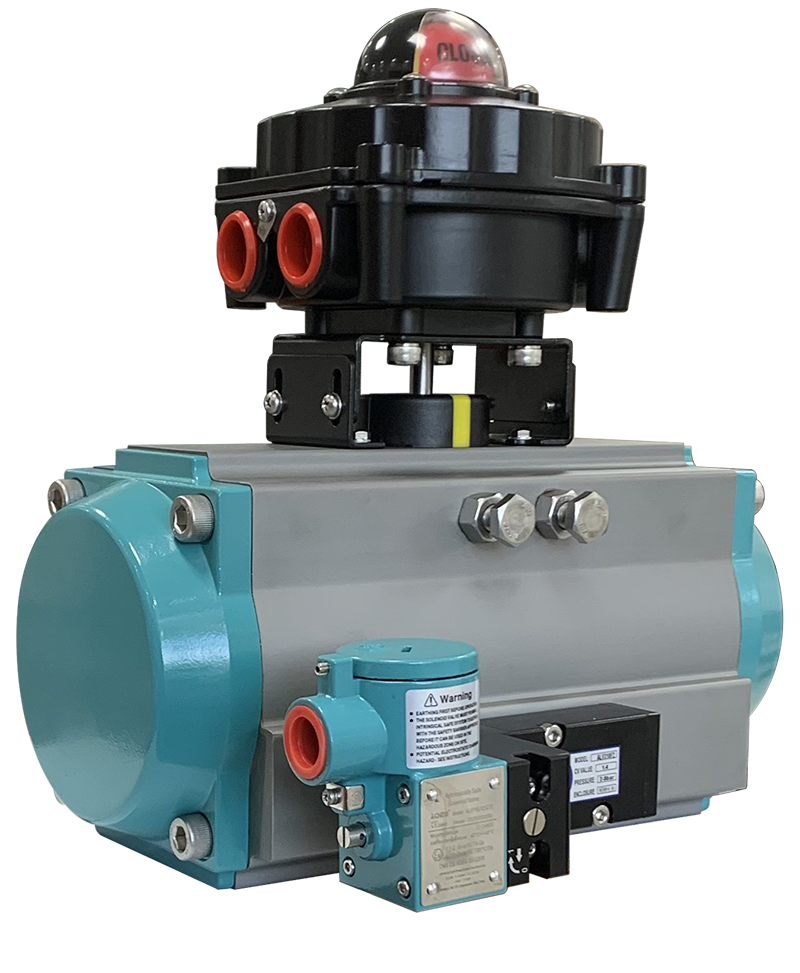

This type of intrinsically safe pilot acting solenoid valve is composed of two parts: intrinsically safe direct action solenoid valve and spool valve, which is installed each other according to CNOMO-30 standard. The CV value of the spool valve can be selected from 1.4 to 2.79. The spool valve is available with Namur or In-line connection, with materials of aluminum alloy. This type of intrinsically safe pilot acting solenoid valvecan be directly installed and connected with a variety of pneumatic actuators to achieve the on/off control in the hazardous areas (Zone 0，zone 20).

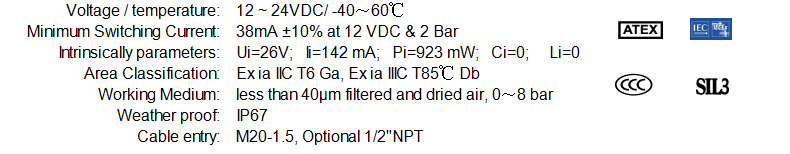

Intrinsical safe technology data

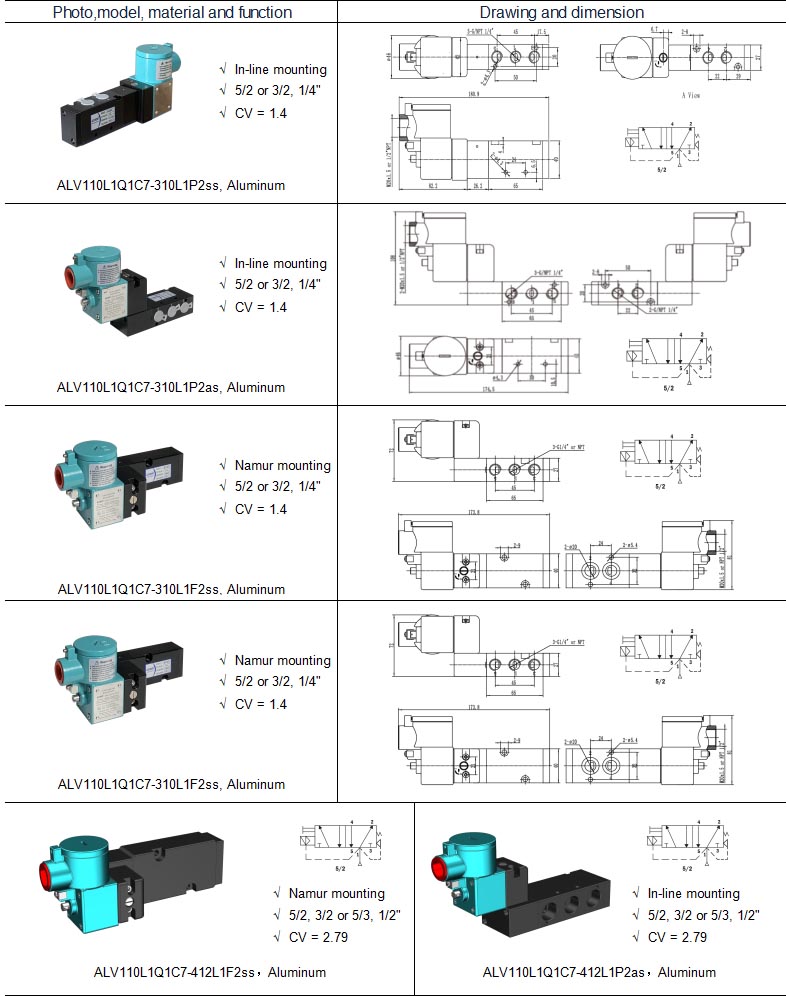

The model no., function and Dimension
