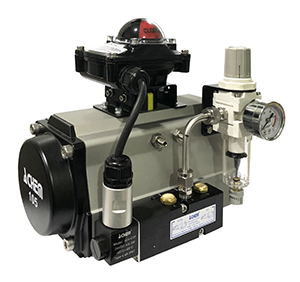

About the product

This series of products is pilot acting solenoid valve with "weather proof structure" and thermoplastic encapsulated pull-type solenoid coil which can offer excellent environmental protection against the ingress of liquids, dusts or other foreign matter into the coil. This valve is with high performance spool valve available both for 3/2, 5/2 or 5/3, and the CV value is availble to 1.1, 1.4 or 2.79.

Wiring diagram of the weather proof structure

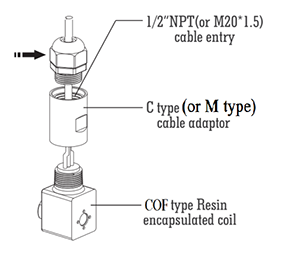

1, This coil consists of two parts, "weather proof structure (cable adaptor)" and thermoplastic encapsulated pull-type solenoid coil (COF type resin encapsulated coil), as shown in the left figure.

2, The cable adaptor and coil are connected by encapsulated threaded installation. It has excellent climate protection performance.

3, The weatherproof cable connector pointed to by the arrow in the left figure is not included in the product configuration. Users need to select and configure it according to their needs. The connection size is 1/2" NPT.

4, After installation correctly in the structure shown in the left figure, the coil's climate protection rating can reach IP67.

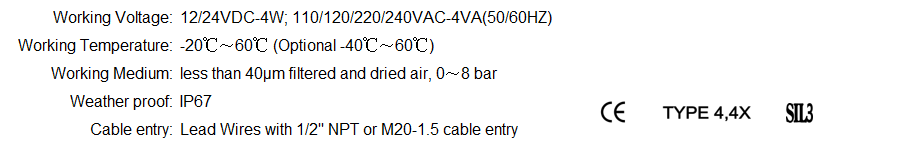

Main technology data

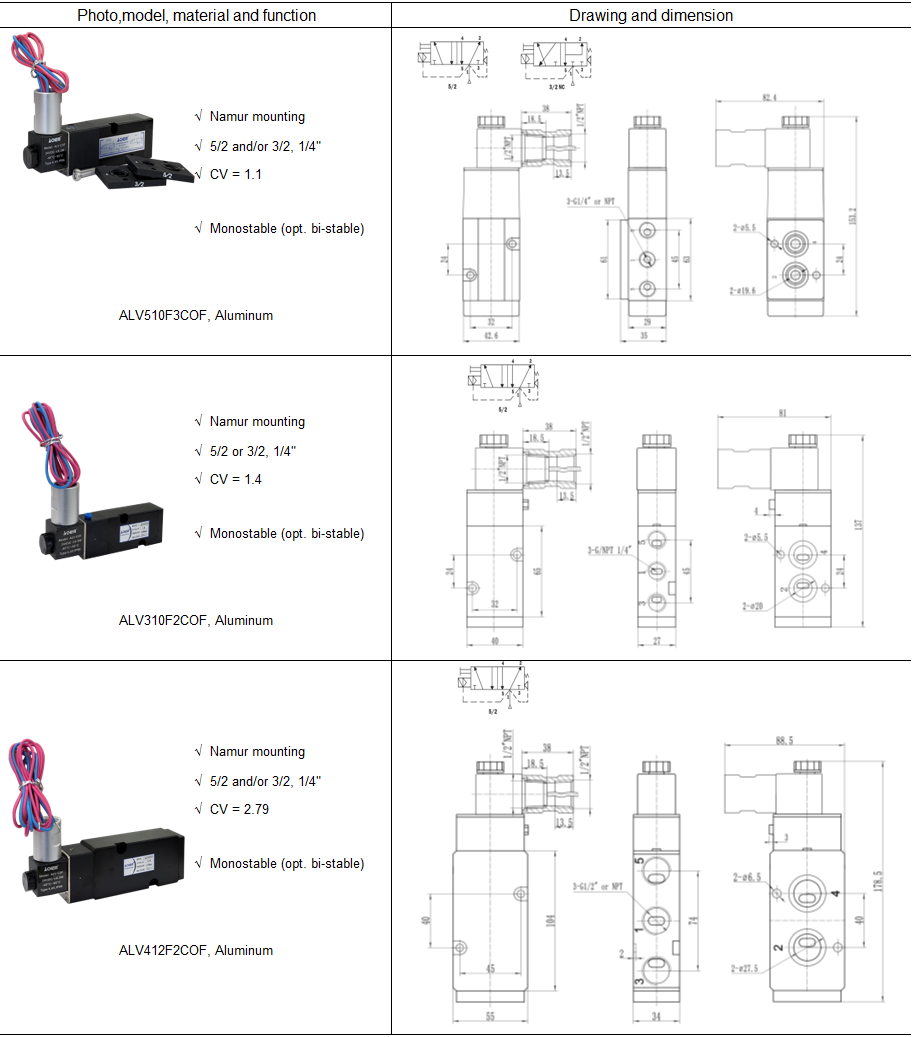

The model no., function and Dimension

Regarding to the details, please contact with info@allied-actuator.com, thank you in advance.
